Delafield is one of the largest Corrugated Metal Hose fabricators west of the Mississippi. We are a hose distributor for nationally recognized brands such as OmegaFlex®, American Boa, Penflex, Hose Master, and Able Metal Hose.

  • Materials – 304, 316, 321, Bronze, and Monel®
  • Unbraided, Single Braid, Double Braid, Triple Braid Available
  • Pressures up to 5,000 PSI – Vacuums down to 29 inches of Hg
  • Hose construction conforms to ASME B31.1, ASME B31.3, Boiler and Pressure Vessel Code (B&PV)
  • Flexible metal hose assemblies certified to European Pressure Equipment Directive (PED)
  • Welders qualified to ASME Section IX & AWS
  • JIC, SAE, NPT, Face Seal (Seal-Lok®), Metric, Tube End, Instrumentation, Code-61, Code-62, ANSI Flange & Pipe Fittings
  • Pressure Testing up to 10,000 PSI – Helium Leak Testing down to 1×10-9 TORR
Flexible Metal Hoses

Flexible Metal Hose Assembly Applications

  • Cryogenic Metal Hose Assemblies – Temperatures down to -450°F
    High Temperature – High Temperatures up to 1500°F
    Chlorine Hose – Built & Fabricated to (Spec: Chlorine Pamphlet 6, Latest Revision)
  • Caustic Chemicals Hose
  • Seismic Applications
  • Power Generation – Turbines, Solar Fields, Alternative Fuels, Green Technologies
  • Exhaust – High Velocity Bleed Duct
  • Vacuum – Autoclave (Including Interlock)
  • Petroleum Drop Hose
  • Instrumentation, Code-61, Code-62, ANSI Flange & Pipe Fittings
  • Internal Flow Liners, External Armor Guard, Firesleeving Available
  • Full Manufacturer Warranty

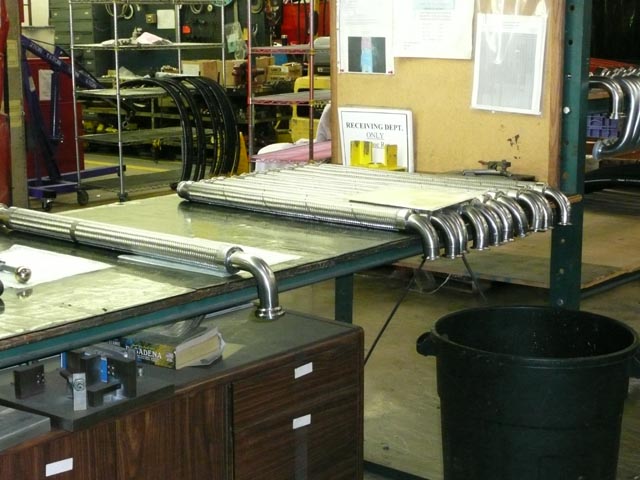

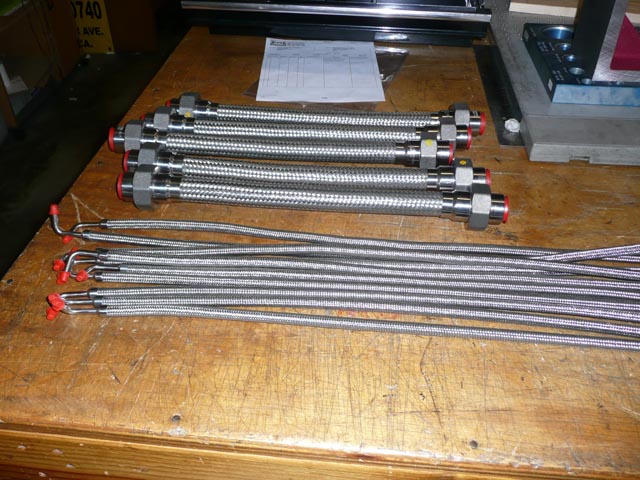

Gallery

Flexible Metal Hoses
